HH am8/12 amplifier.

£500.00

In stock

Description

HH AM8/12 SPECIFICATIONS:

Output power: 30w / 15 ohm. 45w / 8 ohm. 75w / 4 ohm

THD: < 0.1% (25w / 8 ohms)  Input Impedance: 10k ohms (balanced)  Input sensitivity: 0-25v RMS for full output into 15 ohms Noise: -60dB (20hz-20khz)  S/N ratio: 80dB RMS (Relative 25 watt into 15 ohms)  Damping factor: >100 ref 7.5 ohms load at 100hz

Slew rate: 5v / uS

Protection: proof against short and open circuit

Mains input: 240, 230, 220, 210, 115 a.c. 50 / 60 Hz

Mains input connector: Neutrik / cannon l.n.e.

Transformer balanced input

Signal input connectors: P.O. Bantam Jack / Painton 310035 multicon 4 way (balanced)

darlington output stage

Loudspeaker o/p connector: Painton 1S9F 11 pole socket

Ambient temperature: up to 50 C without forced ventilation

Dimensions: 247mm x 155mm x 89mm.

Weight: 4.1 kgs per amplifier. (Unpacked)
Fully serviced. Recapped with bew philips power supply capacitors.

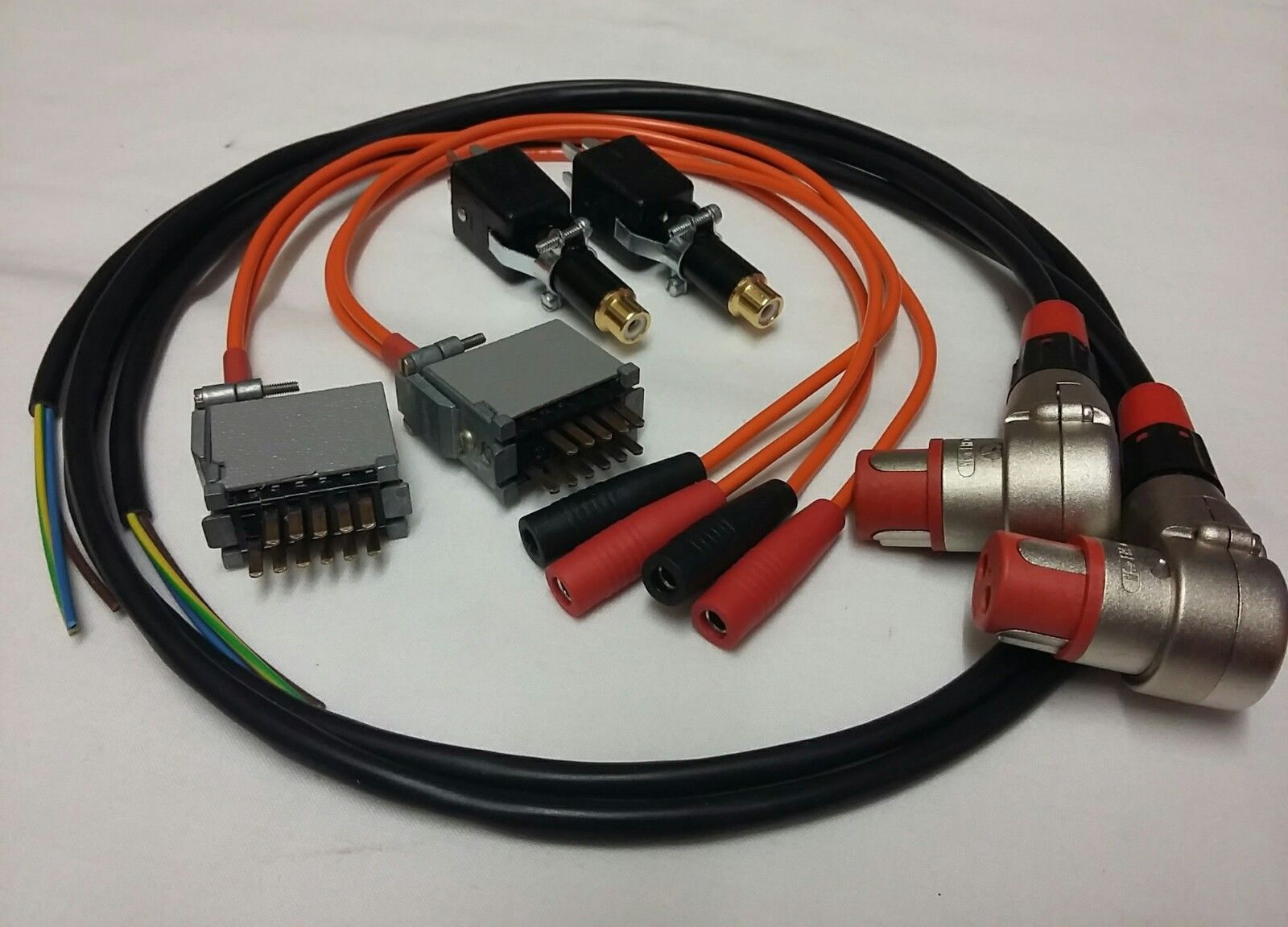

Leads not included but available.y
